How a Roll Forming Machine Works: Precision Metal Shaping
A roll forming machine is a highly efficient and continuous metal forming process used to create long, consistent profiles with complex cross-sections from coiled metal strip (like steel, aluminum, copper, or other alloys).
The following is the roll forming machine working principle:
-
Material Feed: A coiled metal strip is loaded onto an uncoiler or decoller at the start of the roll forming line. This strip is fed into the machine at a controlled speed.
-
Initial Guidance & Flattening: The strip often passes through leveling rolls to remove any coil set or curvature and ensure it’s perfectly flat before forming begins.
-

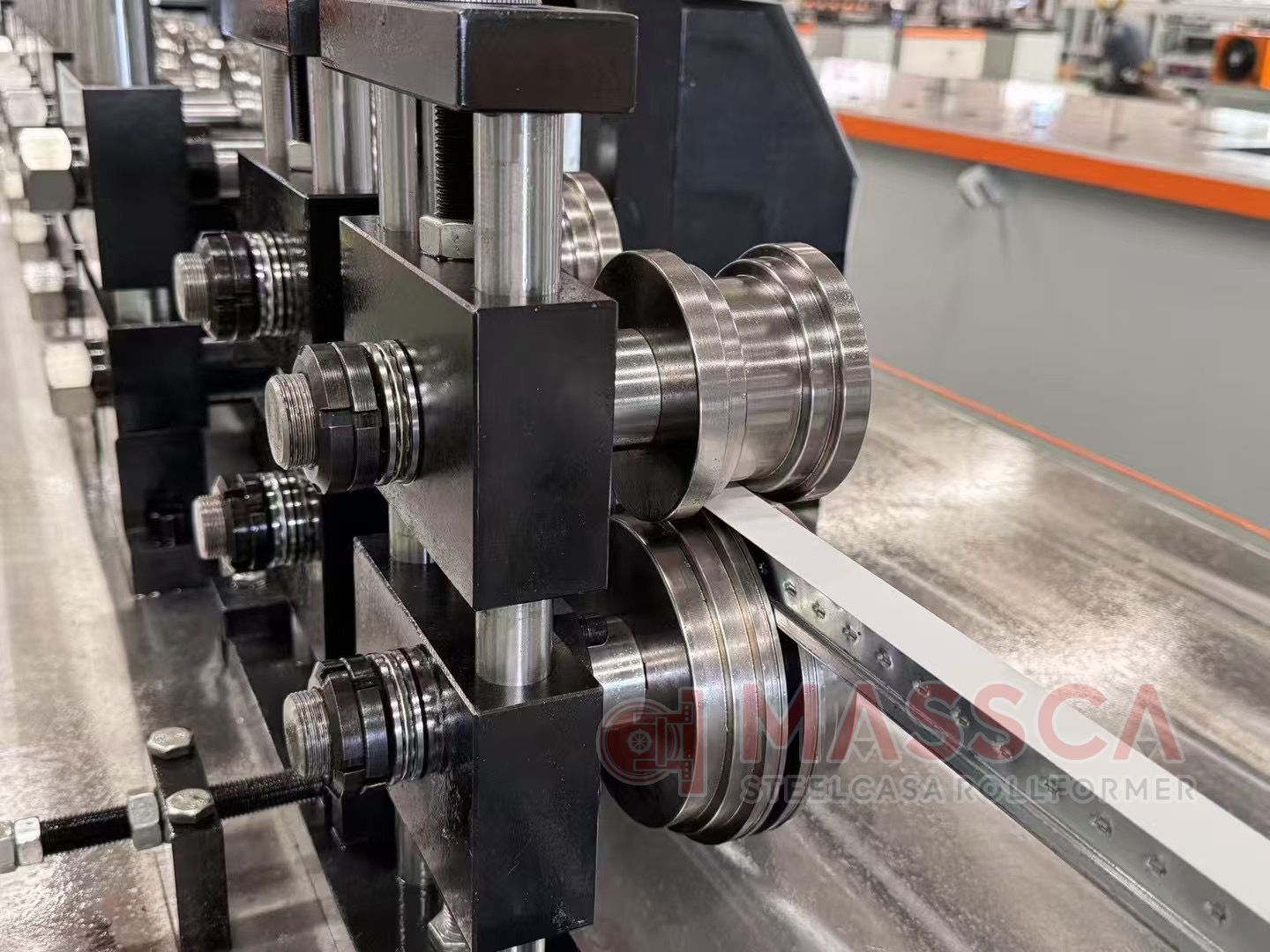

Progressive Forming Stations: The heart of the roll forming machine consists of a series of paired forming rolls mounted on shafts within individual forming stands or stations. These stations are arranged in sequence.
-
Each forming station performs a small, incremental bend on the metal strip.
-
The shape of the rolls in each consecutive station gradually changes, progressively bending the metal closer and closer to the desired final cross-sectional profile.
-
Roll Design: The tooling rolls (top and bottom) are precision-machined to exact geometries to achieve the specific bends required at their stage without overstressing the material.
-
-
Continuous Motion: As the metal strip moves continuously through the machine, it passes through each forming station in turn. The roll forming process is constant, unlike press braking, which works on discrete lengths.
-
Final Shape Achievement: By the time the strip exits the last forming station, it has been transformed into the complete, finished cross-sectional shape (e.g., a C-channel, Z-purlin, tube, custom trim profile, roof panel, etc.).
-
Cutoff: After exiting the forming stations, the now fully formed continuous profile moves into a cutoff press (typically a flying cutoff). This press synchronizes its movement with the moving profile, cleanly shearing it into predetermined lengths without stopping the line.
-
Output: The cut-to-length finished products exit the roll forming machine onto a run-out table or conveyor for stacking, packaging, or further processing.
Key Advantages Highlighted by Roll Forming Machine Operation:
-
High Speed & Volume: Enables very fast, continuous production, ideal for large quantities.
-
Complex Profiles: Capable of producing intricate shapes that are difficult or impossible with other methods.
-
Consistency & Precision: Delivers extremely uniform profiles with tight tolerances along the entire length.
-
Material Efficiency: Minimal scrap generated compared to stamping or punching.
-
Smooth Surfaces: Creates profiles with excellent surface finish and minimal distortion.
-
Long Lengths: Easily produces parts much longer than press bed limits.
Core Components of a Roll Forming System:
-
Uncoiler/Decoller: Holds and feeds the coil.
-
Entry Guide/Leveler: Straightens and aligns the strip.
-
Roll Forming Mill: The main frame houses the forming stations with their drive shafts and tooling rolls.
-
Drive System: Electric motors, gearboxes, and drive chains/shafts powering the rolls.
-
Control System: PLC and HMI for speed control, synchronization, and monitoring.
-
Cutoff Press: Hydraulic or mechanical press for cutting lengths (flying cutoff is common).
-
Run-out Table/Conveyor: Handles finished products.
This continuous, progressive forming process makes the roll forming machine a cornerstone technology in industries like construction, automotive, HVAC, appliance manufacturing, and furniture for producing structural components, framing, enclosures, and various metal profiles efficiently and precisely.
