Metal Perforation Line for 1250mm Input Material Coil to Coil Production Line

Category Tags , Brand:

Description

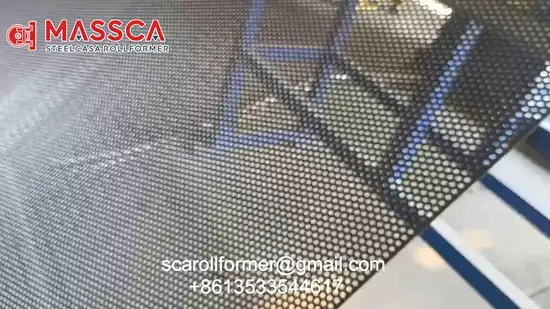

The MASSCA Metal Coil Perforation Line is an integrated system comprising an uncoiler with a built-in leveling, a punching unit, a length-cutting shear, and a recoiler (optional). These components operate in seamless coordination to efficiently produce both perforated coils and perforated sheet panels.
​metal perforation line with recoiler

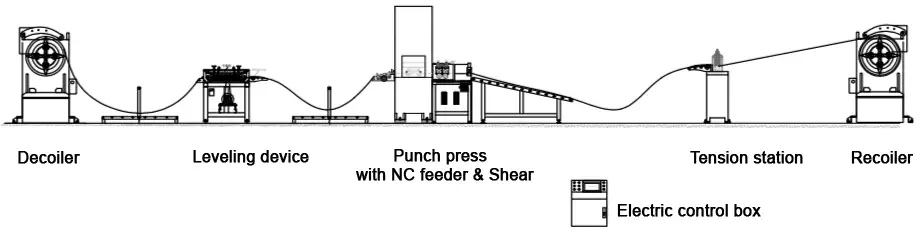

Layout of the metal perforation line coil to coil machine:
sheet metal perforation line layout
Details of each component of Massca sheet metal perforation line:

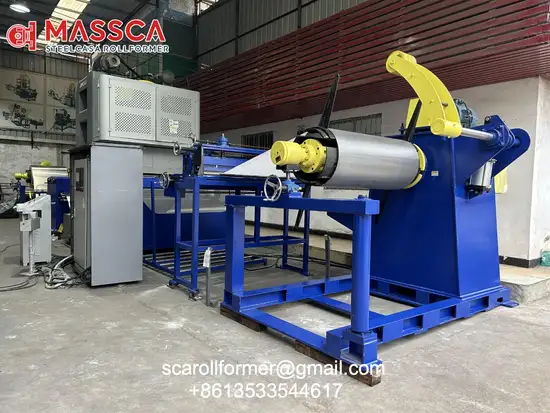

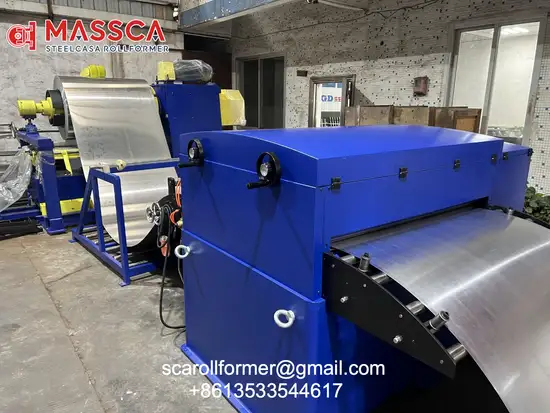

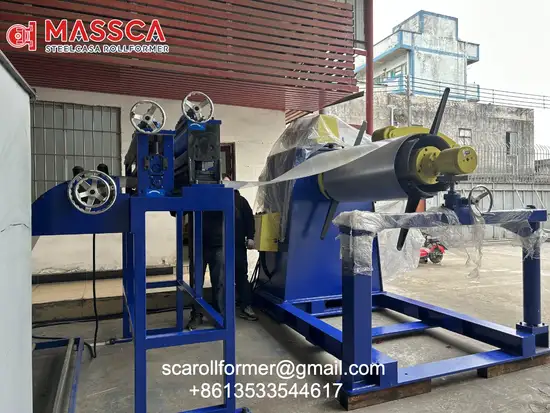

Hydraulic decoiler & Leveling device
sheet metal perforation line leveling

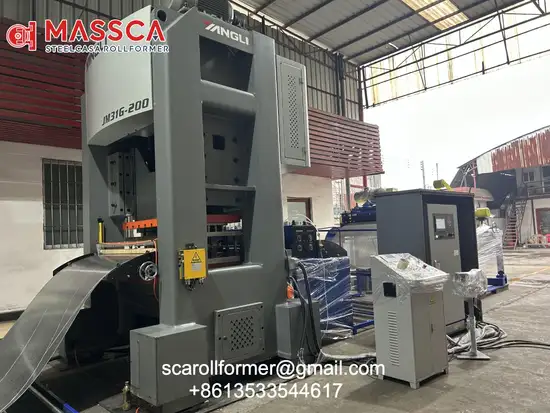

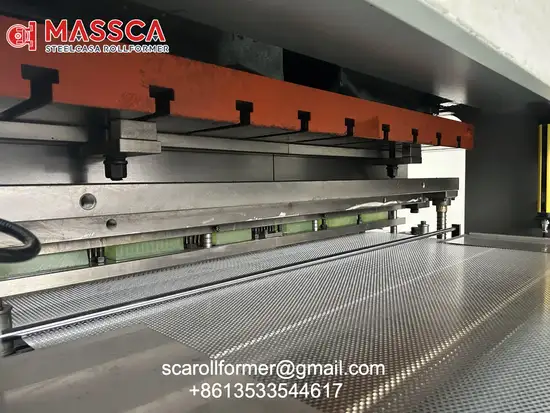

315 Ton punch press ( for 1250mm width material , also can choose 160ton or 225ton punch press)
sheet metal perforation line
sheet metal perforation line
sheet metal perforation line

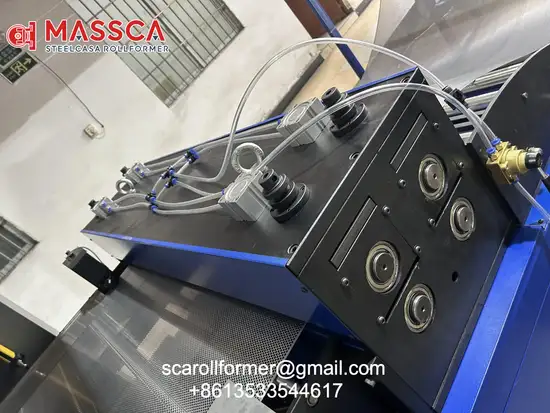

NC Feeder with electric shear ( can used as cut to length line)
sheet metal perforation line NC feeder
Tension station and recoiler  device
sheet metal perforation line with tension station and recoiler
Each part plays a vital role in the production process: the uncoiler with a leveling ensures the metal coil is smoothly fed into the line while eliminating any material warping; the punch executes precise perforation according to preset specifications; the length-cutting shear trims the perforated material to the required dimensions; and the rewinder neatly collects the finished perforated coils. Together, they form a continuous and automated workflow that guarantees consistent quality in manufacturing perforated metal products.
