Warehouse Rack Shelf Panel Roll Forming Machine
Core Specifications
-
Forming Stations: 24 groups of fully adjustable stands for complex profile shaping (customizable to specific rack designs).
-
Material Compatibility:
-
Thickness: 1.5–3.5 mm (cold-rolled steel, galvanized steel)
-
Max. Strip Width: ≤400 mm (cross beams/shelves); 200 mm (uprights, customizable)
-
-
Production Speed: 8–15 meters/min (dependent on punching complexity).
-
Drive System: Heavy-duty gearbox + worm gear transmission for stable high-speed operation.
-
Control System: PLC + HMI touchscreen with 20 preset parameter slots for rapid batch switching.
Technical Advantages
-
Unmatched Precision:
-
Servo feeding (±0.1 mm accuracy) + hydraulic tracking cutter for burr-free cuts.
-
The optional straightening unit ensures ±0.5 mm/m linearity.
-
-
Robust Construction:
-
Stress-relieved cast iron/steel frame (30% extended lifespan).
-
Hardened forming shafts (ø50–90 mm, GCr15/Cr12 mov steel, HRC 56-62).
-
-
Flexible Production:
-
Quick-change tooling for beams, uprights, and shelving panels.
-
Compatible with COPRA® design software for profile optimization.
-
-
Integrated Automation:
-
Full-line configuration: Uncoiling → Punching → Forming → Precision Cutting → Stacking.
-
Minimal manual intervention, reducing labor costs by up to 40%.
-

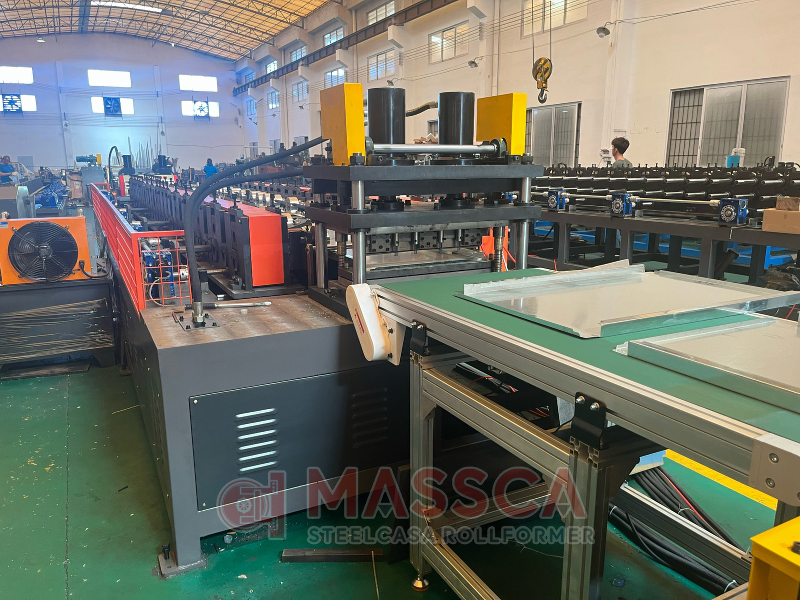

Photos of Warehouse Rack Shelf Board Roll Forming Machine:
Applications
-
Ideal for mass-producing:
-
Selective pallet racking beams
-
Decking panels
-
Structural uprights
-
Cantilever arms
-
*Note: 24-station machines are custom-built; provide CAD drawings for accurate quotes. Bulk orders (5+ units) attract 8–10% discounts.*
Request a Custom Quote: Contact sales@steelcasa.com with your profile drawings for real-time pricing, factory videos, and logistics solutions (FOB/CIF terms available).
Optimize your rack production – engineer efficiency from coil to shelf.
