L Wall Angle Roll Forming Machine

Description

Ceiling Main T grid, Cross T grid and Wall Angle. Together, they follow a simple logic: wall angles set the boundary, main runners form the load-bearing base, and cross tees refine the grid. This design ensures stability (resisting vibration or temperature shifts) and a uniform base for panels, making it essential for flat, safe, and neat ceilings in spaces from offices to homes.

Main Specifications:


Mode: Massca L Wall Angle Roll Forming Machine

Product size:  21x21mm

Applicable materials:  Prepainted galvanized coil (PPGI)

Material thickness:  0.25 – 0.38 mm

Whole line speed: 0 – 45 meters/min

Forming Tolerance: 0.1mm ( height, width)

Straightness tolerance: ≤ 0.2°/meter

Total machine power: 7.2 KW

Power: 380V, 50Hz, 3 Phase



Production Process:

Uncoiling (GI & PPGI) – Forming – Automatic punching & cutting – PLC control – Hydraulic system – Unloading

Details of each component of the Main T grid roll forming machine:


  • Manual Decoiler   1000kgs*2 sets
  • Roll Forming Main Machine:  Chain drive / Gear Drive Optional | 18 Groups of rollers, 2 sets straightener roller|

Stitching rollers: 4 pcs| 0-30m/min | Roller material: Cr12 mov | Indepent stands

  • Full automatic punching & cutting device:

Feature: Energy-storage type rapid stamping: Punching and heading are completed in one stamping process without a machine halt. (Note: It is currently the only manufacturer in mainland China and Taiwan that can complete punching and heading in one go without stopping the machine.)

  • Run-out table: 304 stainless steel; surface painted

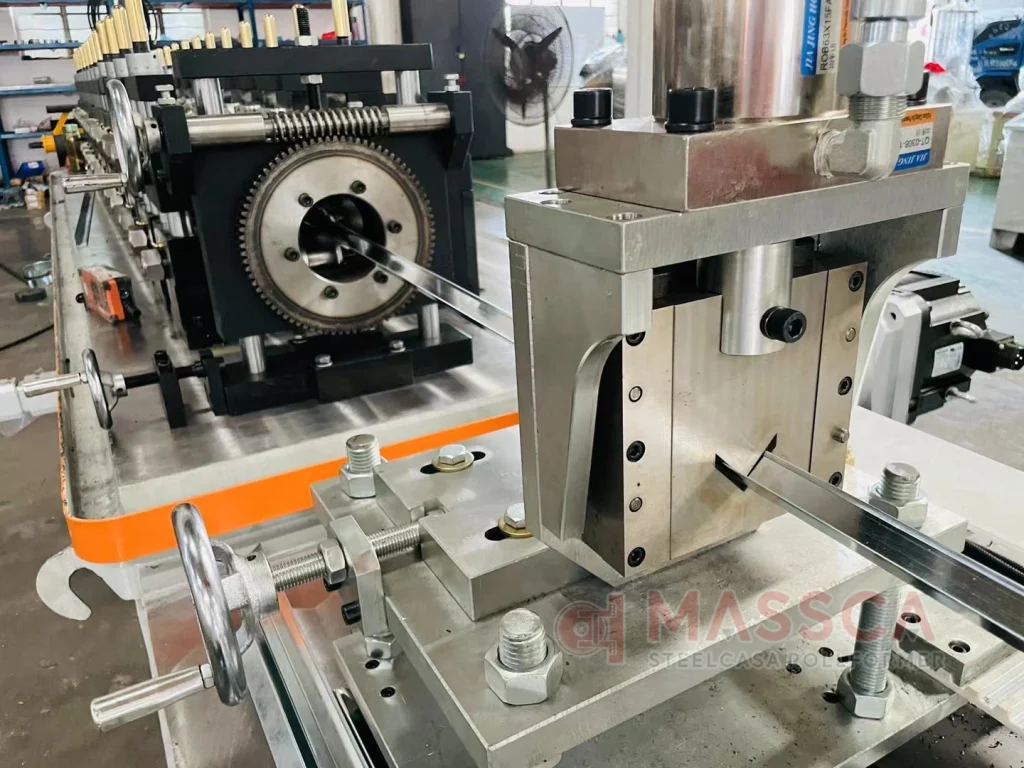

wall angle roll forming machine

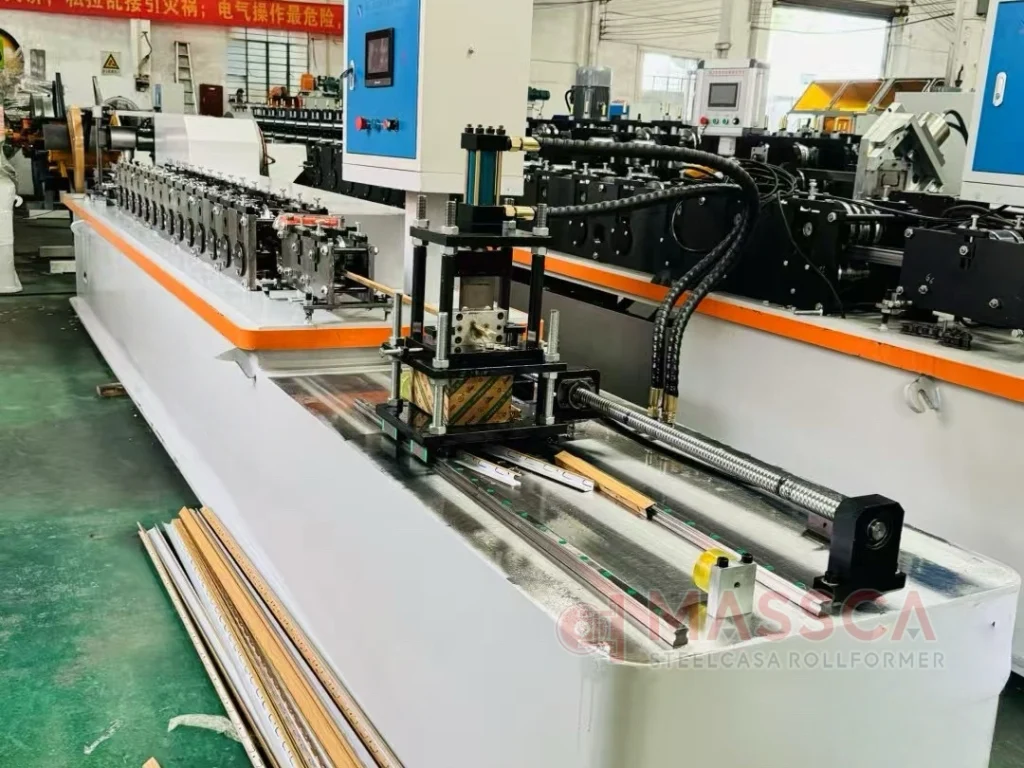

wall angle roll forming machine
wall angle roll forming machine
wall angle roll forming machine
