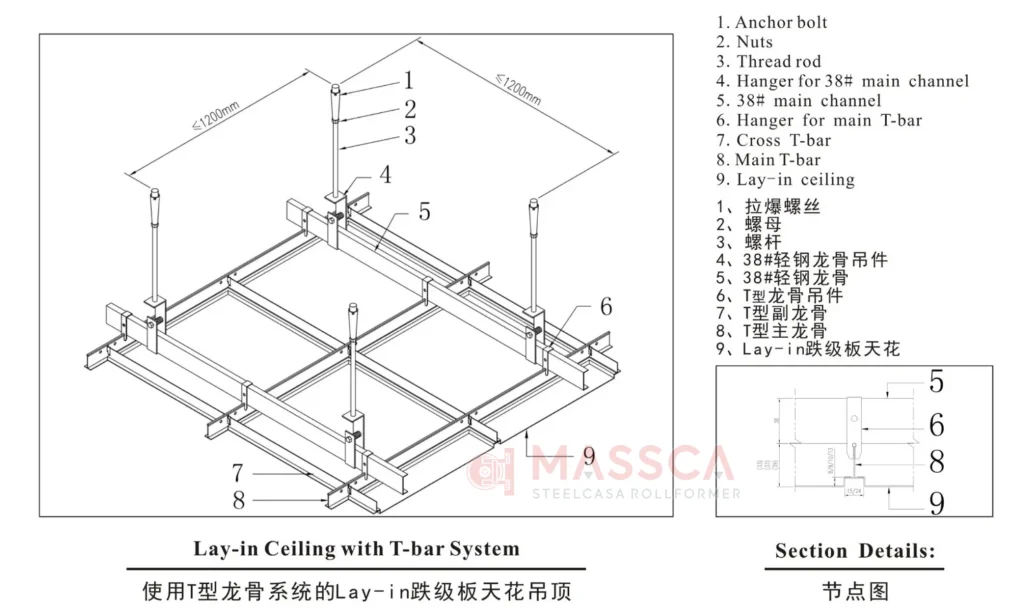

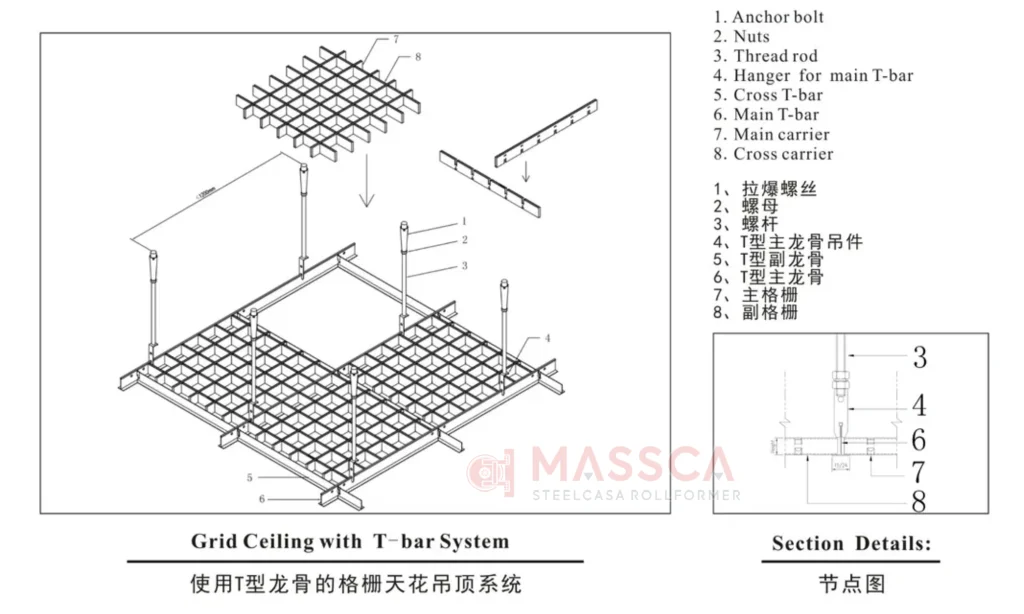

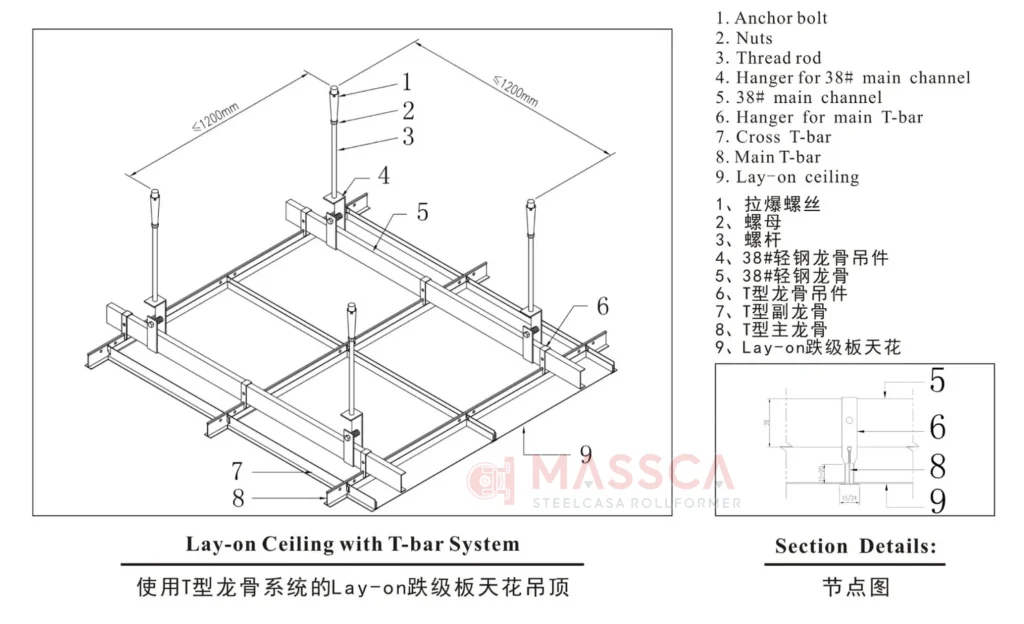

Ceiling Main T grid, Cross T grid and Wall Angle. Together, they follow a simple logic: wall angles set the boundary, main runners form the load-bearing base, and cross tees refine the grid. This design ensures stability (resisting vibration or temperature shifts) and a uniform base for panels, making it essential for flat, safe, and neat ceilings in spaces from offices to homes.
Main Specifications:

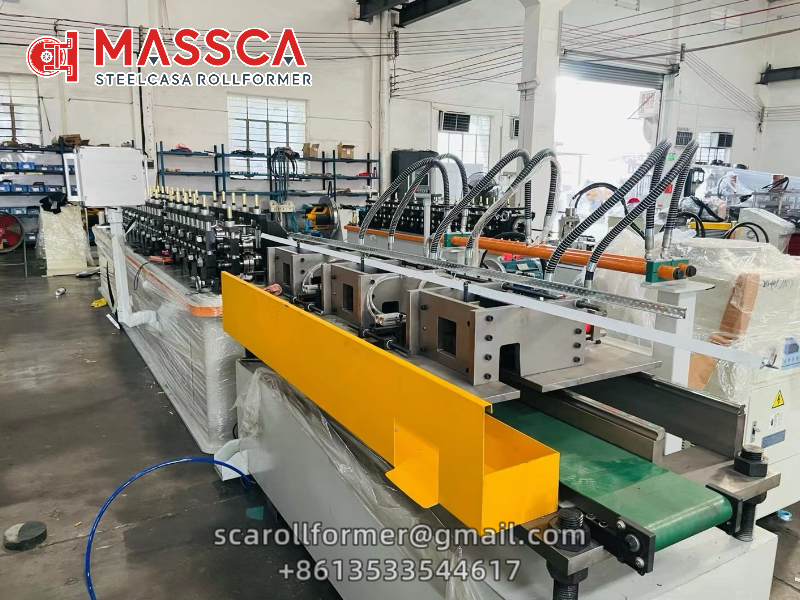

Mode: Massca Cross T Grid Roll Forming Machine
Product size: 26x24x610/1220mm
Applicable materials: Galvanized coil (GI); Prepainted galvanized coil (PPGI)
Material thickness: Galvanized coil: 0.2 – 0.3 mm; Prepainted galvanized coil: 0.15 – 0.23 mm
Product length: 1200 mm (1 piece out) and 600 mm (2 pieces out) (metric)
Production speed: 40 pieces/minute (each piece with a length of 600 mm)
20 pieces/minute (each piece with a length of 1200 mm)
Whole line speed: 0 – 35 meters/minute
Forming tolerance: 0.1 mm (height, width)
Length tolerance: 0.3 mm/meter
Total machine power: 17 KW
Power: 380V, 50Hz, 3 Phase
Unit size (L x W x H): 14 * 2 * 1.3 m

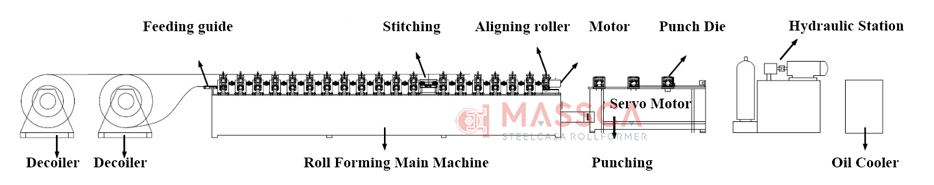

Production Process:
