Carrier Roll Forming Machine for Baffle Ceiling Installation
PROFILES
Main specifications of the baffle carrier making machine:
Material: Galvanized steel
Material thickness: 0.6-0.8mm
Input material with: 88mm
Speed: 18m/min
Profile

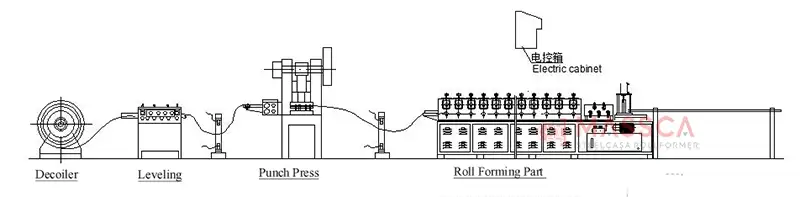

Whole Process flow of the carrier-making machine and each component details
Decoiler→ Leveling → Punch Press → Roll Forming main machine → Hydraulic cut-off→ Run-out table

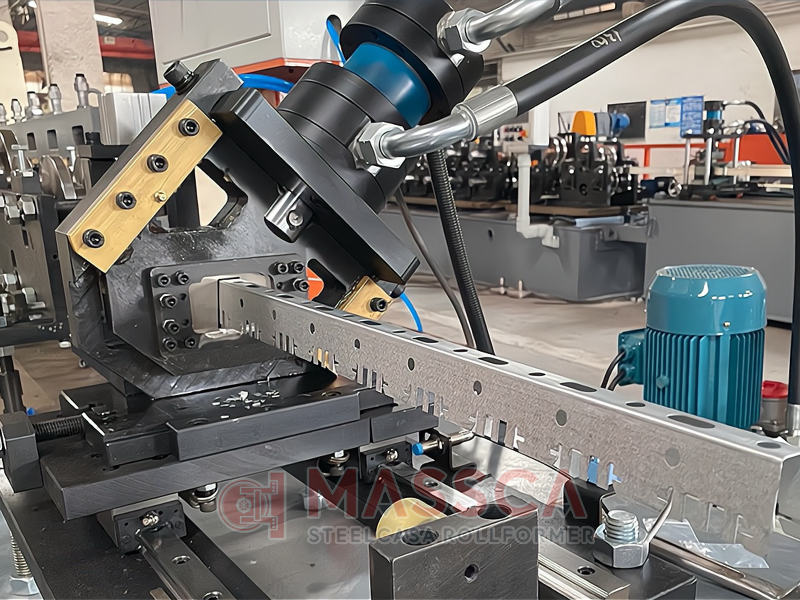

Details/Photos and each component of the baffle ceiling equipment:
1) Decoiler:
- automatic uncoiling
- Manual tension and expansion
- capacity: 1000kgs
2) Leveling
- 15/21 roller leveling device
3)Punch Press
- 25-ton Punch press with NC feeder
- Equip auto oiling device
4)Roll forming main machine:
Machine frame: welded from a complete steel plate
10 groups of rollers
Side wall: 25mm
Forming rollers material: Cr12 mov, quenching heat treatment
Speed: 18m/min
5)Hydraulic cut-off device:
Cutting mold material: Cr12mov
6)Control system:
PLC Control, HMI Operation
