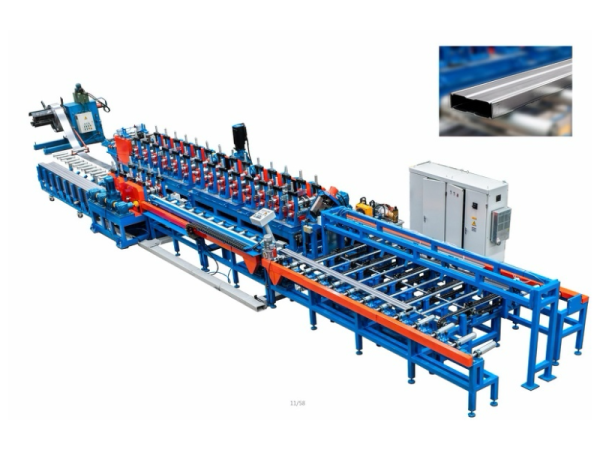

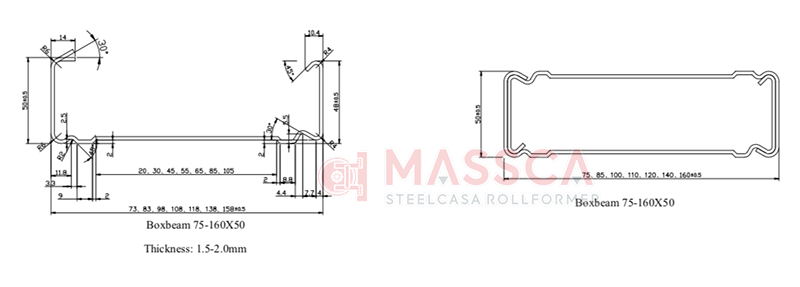

I. Profile drawing:

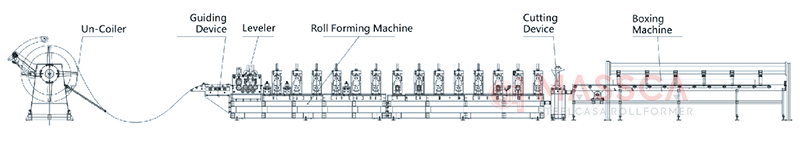

II. Process flow of the boxbeam roll forming machine
III. Main Components
i. Uncoiler
capacity: 3ton
ii. Roll forming main machine
- Number of forming stations: 18 groups
- Roller material: Cr12, HRC58-62
- Frame structure: 100 square tube, horizontally welded
- Integral clamping plate: 45# steel, 30mm thick
- Bearing specification: 62/63 series
- Transmission mode: Precision gears
- Drive motor: 11KW
- Reducer: WXD/silent series
- Straightening rollers: 1 set
- Changeover mode: Servo changeover
- Length fixing mode: Encoder
- Roller cooling mode: Independent emulsion water-cooled channel
- Equipment floor space (L×W×H): 22×1.5×1.2m
- Production speed: 5-10 meters/minute
iii. Flipping machine
- Process: Automatically flip the workpiece into the beam combining machine
- Flipping action: Fully automatic
- Clamps: One batch
- Action mode: Controlled by electric control system
- Length: 3 meters
- Speed: According to the rhythm of the forming machine
iv. Boxing machine
- Working property: Automatic clamping
- Forming clamping groups: 6 sets
- Power: 3KW
- Width adjustment mode: Servo full automatic
- Roller material: Cr12 finish-turned, HRC58-60
v. Hydraulic station
- Type: Horizontal
- Disassembly method: Quick-change structure
- Cooling method: Natural air cooling
- Punching frequency: 30 times/minute
- Oil tank capacity: Above 50L
- Power: 5.5KW
vi. Electric control system
- Function: Length/speed adjustable
- Inverter: Sine/Chinese famous brand
- PLC: XINJIE/Chinese famous brand
- Low-voltage electrical components: Chinese famous brand
- Encoder: OMRON/Japanese brand
- Optical fiber: Chinese famous brand
- Electrical cabinet fan: Chinese famous brand
